NordMende mod. Transita de Luxe - Germany 1963

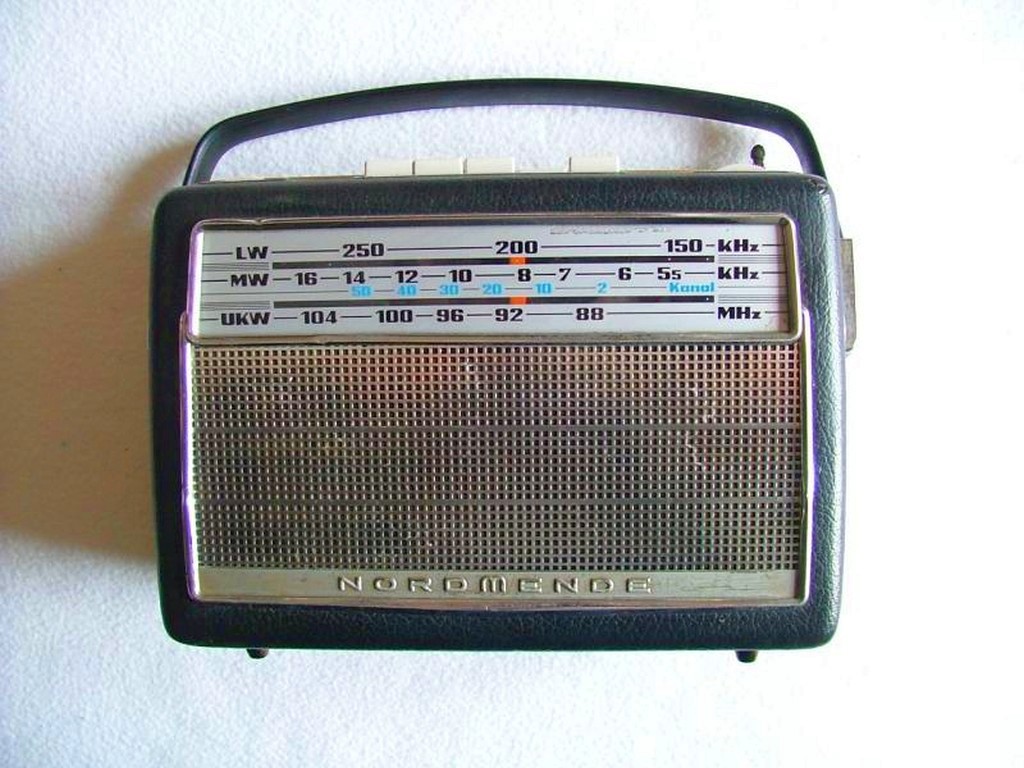

NordMende mod. Transita de Luxe  - West Germany 1963 -  Superetherodyne receiver with  LW,MW and FM bands. Frequency coverage: Long Wave band from 150 to 300 khz, Medium Wave broadcast band from 550 to1600 khz, and FM broadcast band from 88 to 104 mhz.  Nine transistor, magnetic speaker, internal ferrite antenna for LW and MW bands, rod antenna for FM band. Wood case covered by imitation leather, front chrome plated grid and dial scale; transport handle. Power supply: 2 x 4,5 V battery type 3LR12. Dimensions: 25x17x9 cm.
NordMende mod. Transita de Luxe  - Germania Ovest 1963 -  Ricevitore Supereterodina per OL, OM e banda FM. Copertura di Frequenza: Onde Lunghe da 150-300 khz, radiodiffusione Onde Medie da 550-1600 khz e stazioni FM da 88 a 104 MHz.  Nove transistor, altoparlante magnetico, antenna in ferrite interna per OL and OM, antenna a stilo per banda FM. Mobile in legno ricoperto di finta pelle con griglia metallica cromata e scala parlante nella parte frontale; maniglia per il trasporto. Alimentazione: 2 x 4,5 V batterie tipo 3LR12. Dimensioni: 25x17x9 cm.
