PHILIPS mod. L3X73T/03 - 1957

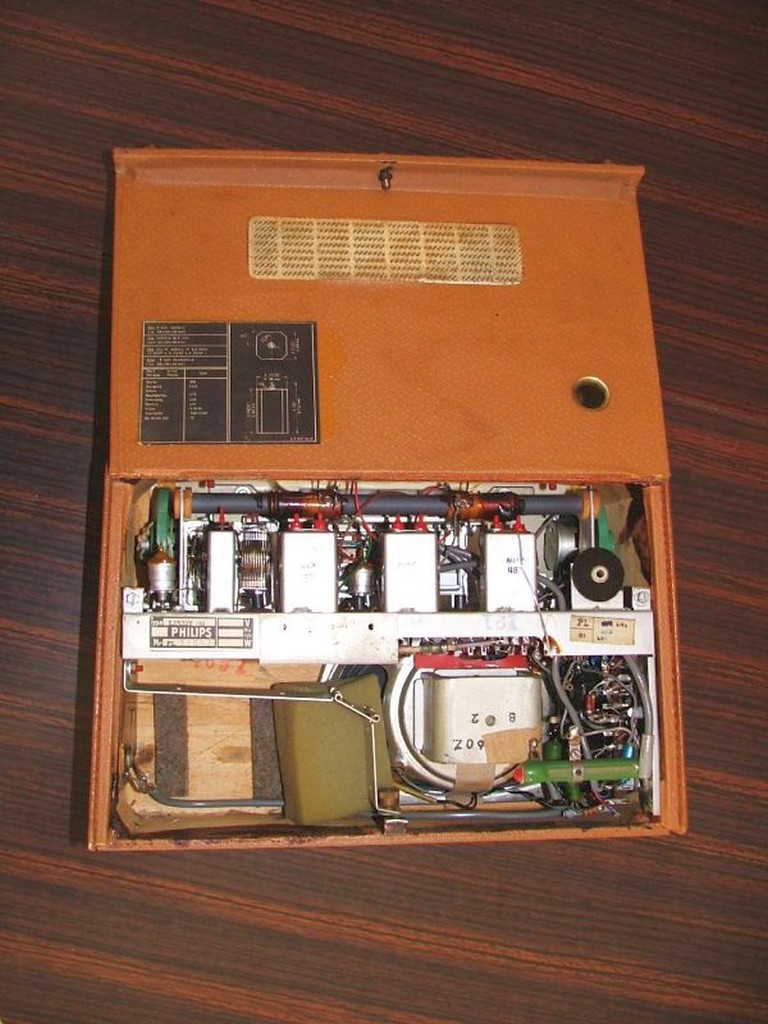

Philips mod. L3X73T / 03 - Holland - 1957. Superheterodyne medium wave portable radio using seven germanium transistors: OC44, OC45, OC45, OC71, OC71, OC72, OC72 and a germanium diode OA79. The intermediate frequency is 458 KHz, the antenna has a ferrite core, the cabinet is made of wood covered with imitation leather with a carrying handle. Power is supplied by a 6V type A dry battery (Burgess F4H or Eveready 409). Dimensions: 27x19x9.5 cm.
Philips mod. L3X73T/03 - Olanda - 1957. Radio portatile supereterodina per Onde Medie che impiega sette transistor al germanio: OC44, OC45, OC45, OC71, OC71, OC72, OC72 e il diodo al germanio OA79. La frequenza intermedia a 458 KHz, l'antenna ha il nucleo in ferrite, il mobile in legno ricoperto di finta pelle con maniglia per il trasporto. L'alimentazione fornita da una batteria a secco da 6 V tipo A (Burgess F4H o Eveready 409). Dimensioni:  27x19x9,5 cm.
Click to enlarge Click to enlarge Click to enlarge
Click to enlarge Click to enlarge Click to enlarge
Click to enlarge Click to enlarge Click to enlarge
Click to enlarge Click to enlarge Click to enlarge
Click to enlarge Click to enlarge Click to enlarge
Click to enlarge Click to enlarge
